About this product
De ORM 10 camera monitor is special ontworpen als vervanger van de Orlaco Vantage VM09 CRT monitor.
Features

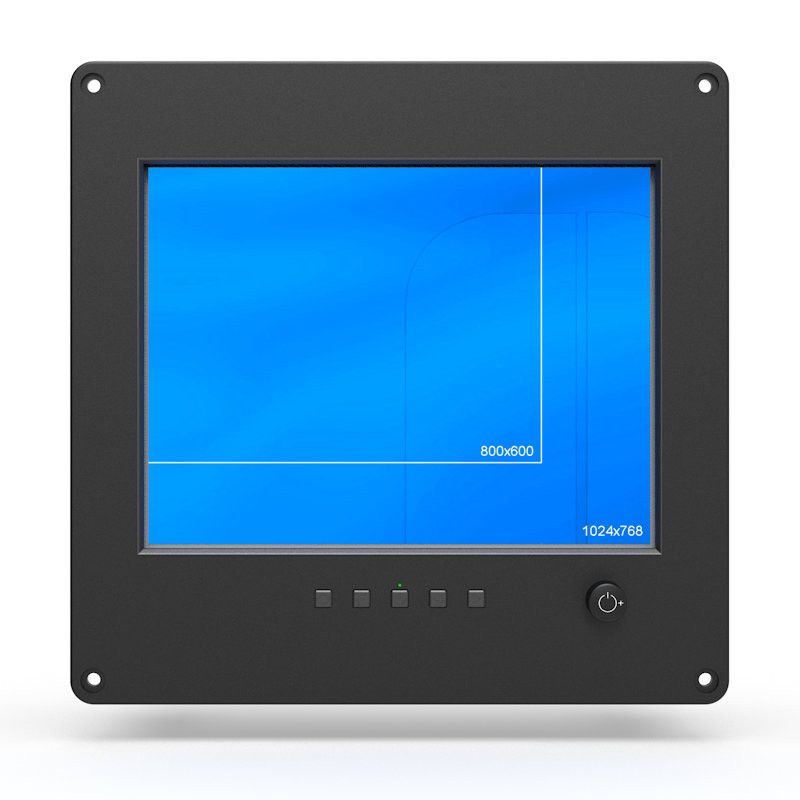

- Resolution 1024x768
- Brightness in cd/m2 500
- Temp. Operating -30/70 °C
- Backlight LED
- Contrast 1200
- Viewing angle U/D/L/R 88/88/88/88

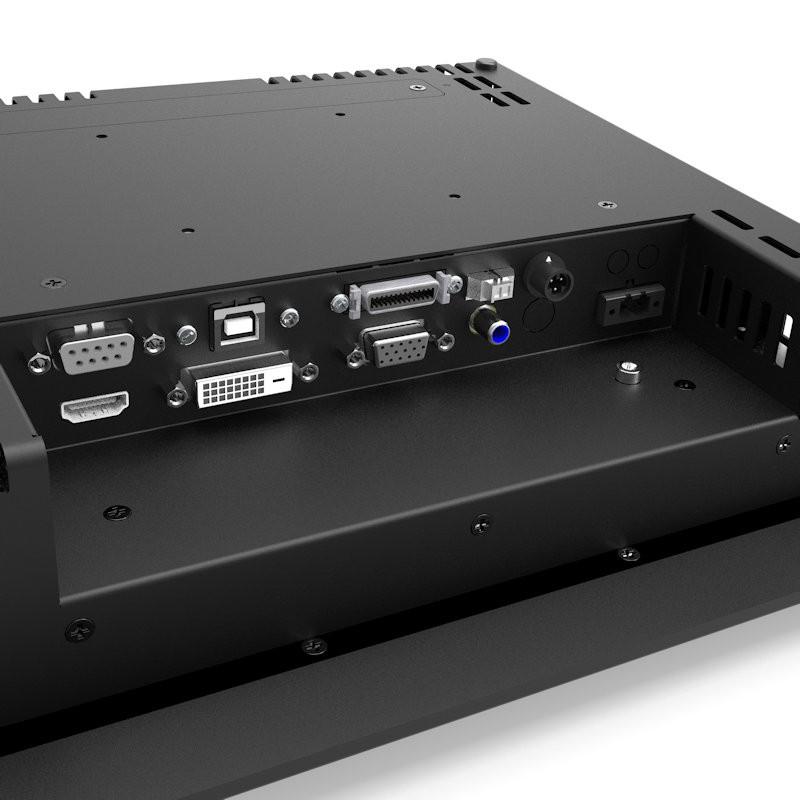

- VGA
- DVI-D
- Composite Video
- HDMI
Options -
Resistive touch USB & RS232
-
Projected cap. USB OR RS232
-
Dimming
-
External Dimming
-
High Bright LED 1000
-
9-34V Input
-
Optical Bonding
DURING OPTICAL BONDING A GEL COATING IS APPLIED BETWEEN THE LCD SURFACE AND THE GLASS. AS A RESULT, THE LACK OF EXTRA LIGHT REFRACTION BECOMES THE MAIN FEATURE, IN ADDITION TO THE ADVANTAGES OF ABSENCE OF DUST AND MOIST, AS ALSO RESISTANCE TO VANDALISM. ANOTHER MAJOR ADVANTAGE IS THE FASTER HEAT DRAINAGE. IN TERMS OF IMAGE, THE CONTRAST AND BRIGHTNESS ARE ENHANCED. A CLEAR IMAGE IS CREATED WHEN A COMBINATION IS MADE WITH ONE OF THE OTHER TECHNIQUES.
-
Anti Glare Glass
ANTI GLARE GLASS IS A FLOAT GLASS WITH A HIGH RESOLUTION AND NO REFLECTIVE EFFECT. THE GLASS IS ALMOST FREE FROM ANY BOTHERSOME REFLECTION. IT IS SUITABLE AS A MOUNTABLE LENS FOR HIGH RESOLUTION SCREENS AND PREMIUM DISPLAYS.
DURING OPTICAL BONDING A GEL COATING IS APPLIED BETWEEN THE LCD SURFACE AND THE GLASS. AS A RESULT, THE LACK OF EXTRA LIGHT REFRACTION BECOMES THE MAIN FEATURE, IN ADDITION TO THE ADVANTAGES OF ABSENCE OF DUST AND MOIST, AS ALSO RESISTANCE TO VANDALISM. ANOTHER MAJOR ADVANTAGE IS THE FASTER HEAT DRAINAGE. IN TERMS OF IMAGE, THE CONTRAST AND BRIGHTNESS ARE ENHANCED. A CLEAR IMAGE IS CREATED WHEN A COMBINATION IS MADE WITH ONE OF THE OTHER TECHNIQUES.
ANTI GLARE GLASS IS A FLOAT GLASS WITH A HIGH RESOLUTION AND NO REFLECTIVE EFFECT. THE GLASS IS ALMOST FREE FROM ANY BOTHERSOME REFLECTION. IT IS SUITABLE AS A MOUNTABLE LENS FOR HIGH RESOLUTION SCREENS AND PREMIUM DISPLAYS.
Specifications ORM 10 Camera Monitor
The ORM 10 camera monitor has a controller that converts the analogue video signals into digital signals that are required for adequate functioning of the monitor. The LCD-controller makes this screen a great replacement of the CRT-screen. Just like the other monitors, the camera monitor will be equipped by default with glare-free and contrast enhancing glass. In addition, the monitor is protected against, for example, dust and moist. The ORM10 of Nottrot BV as part of the shipping is also equipped with dimming by default. The ORM10 can be installed as a 1:1 replacement of the VM09: all installation dimensions are the same. Only the depth is far less and also the screen produces a lot less heat.
