About this product

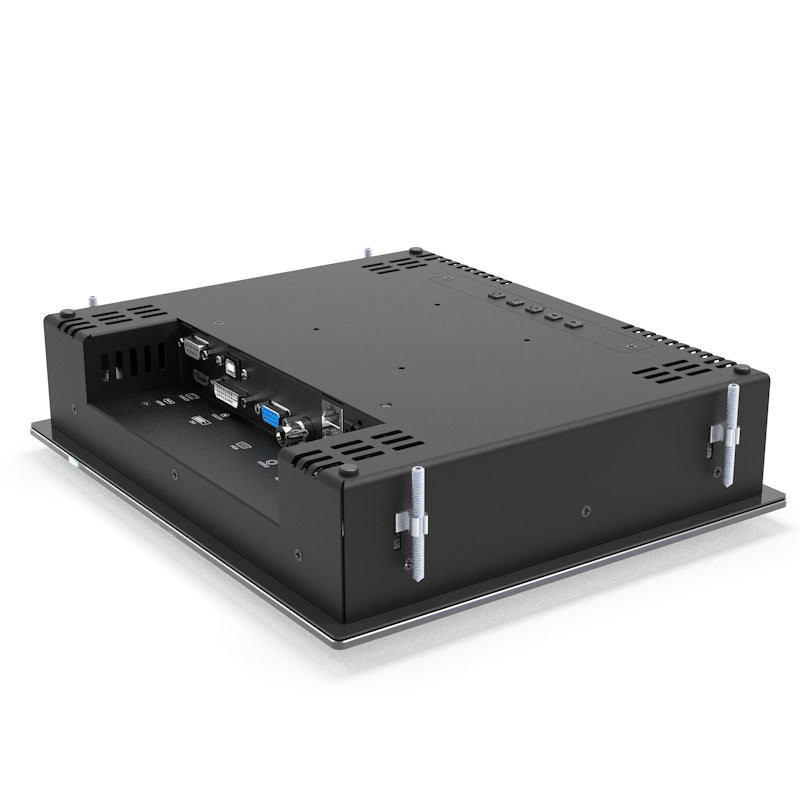

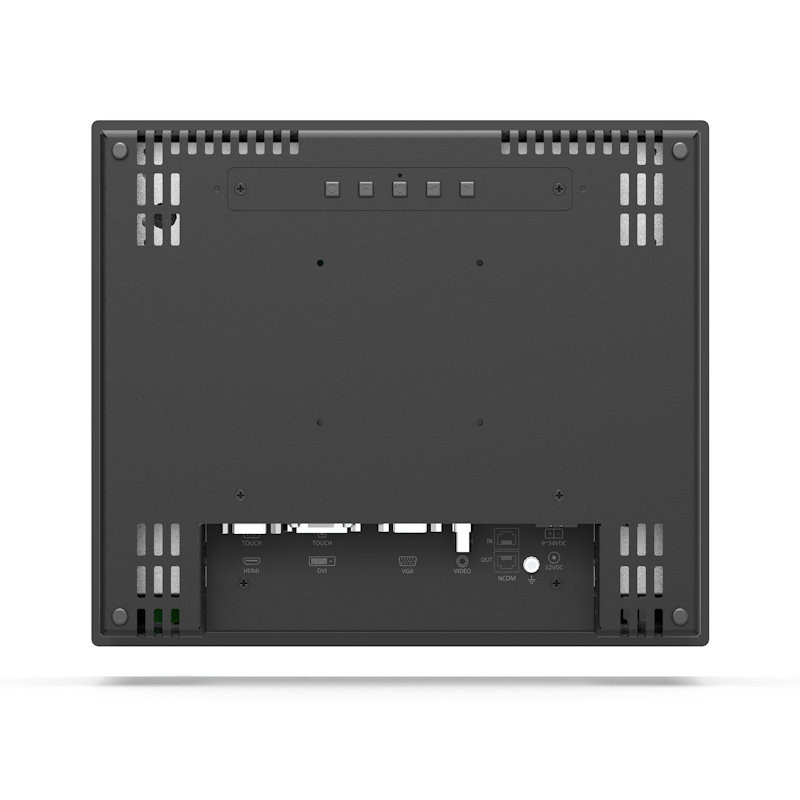

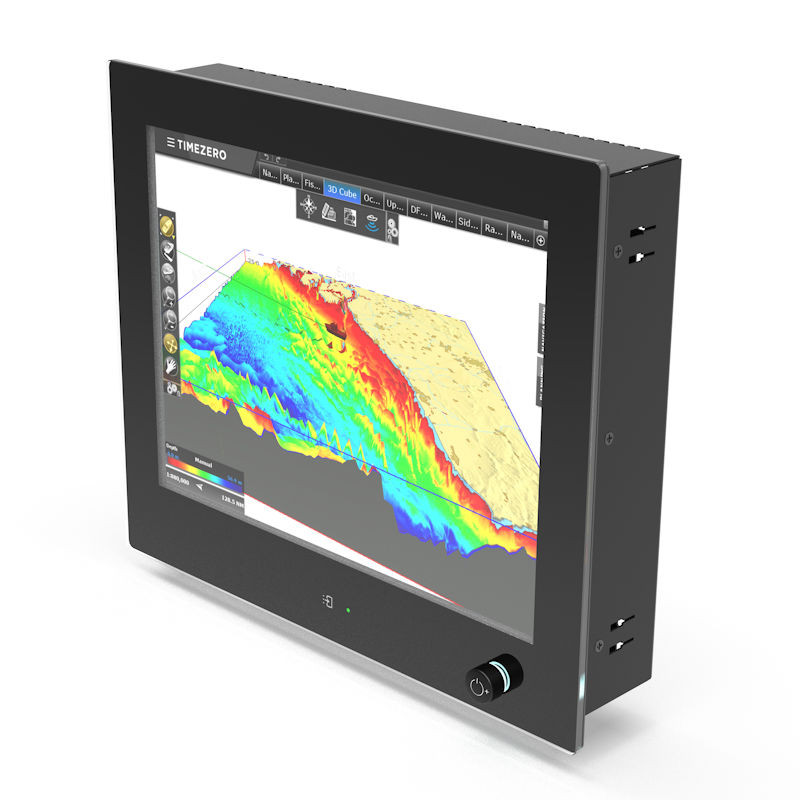

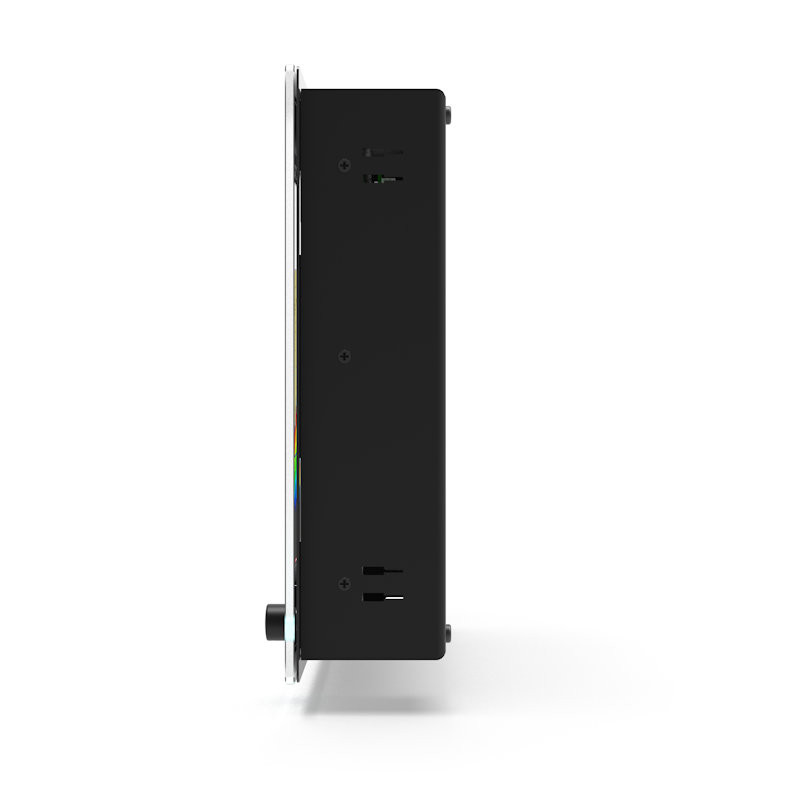

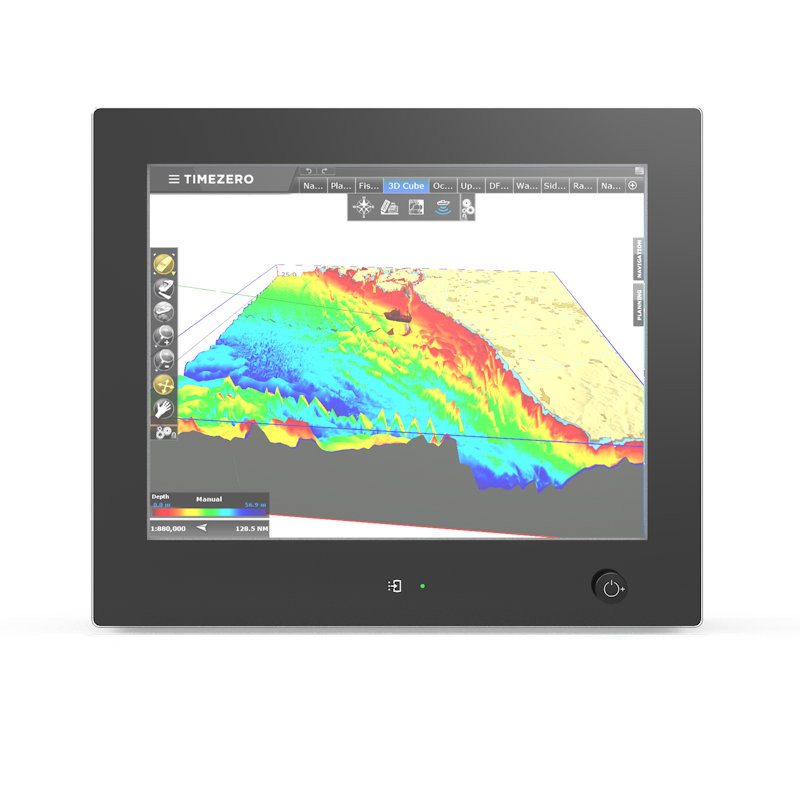

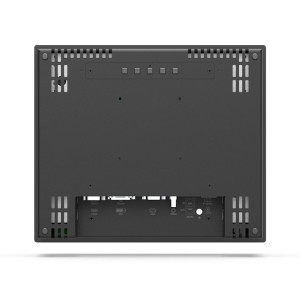

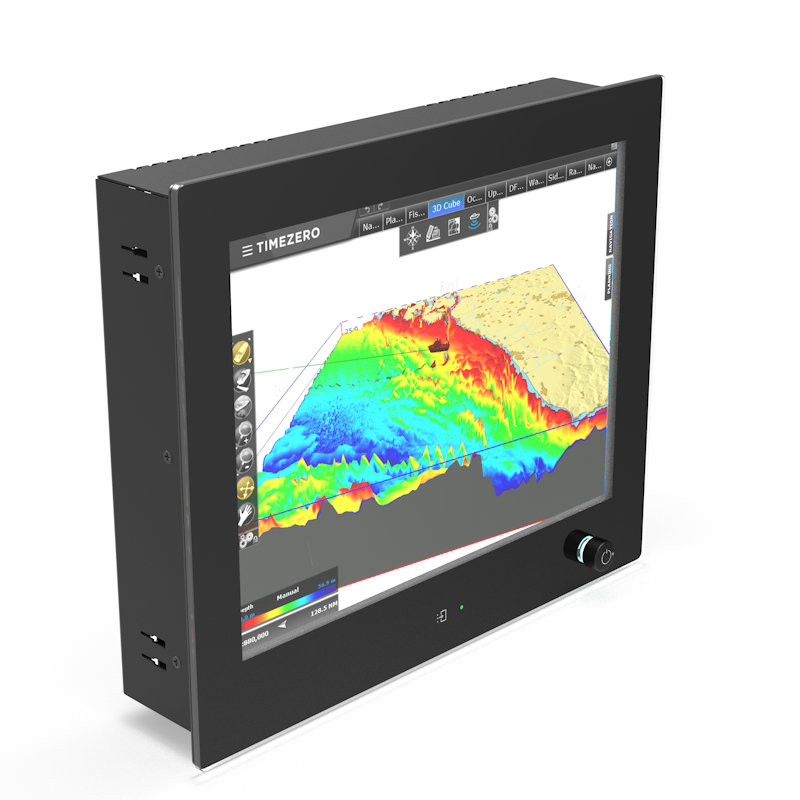

12.1 Panel Mount Glass Extended monitor.
Features
- Resolution 1024x768
- Brightness in cd/m2 500 (Optional High Bright)
- Temp. Operating -30/85 °C
- Backlight LED
- Contrast 700
- Viewing angle U/D/L/R 80/80/80/80

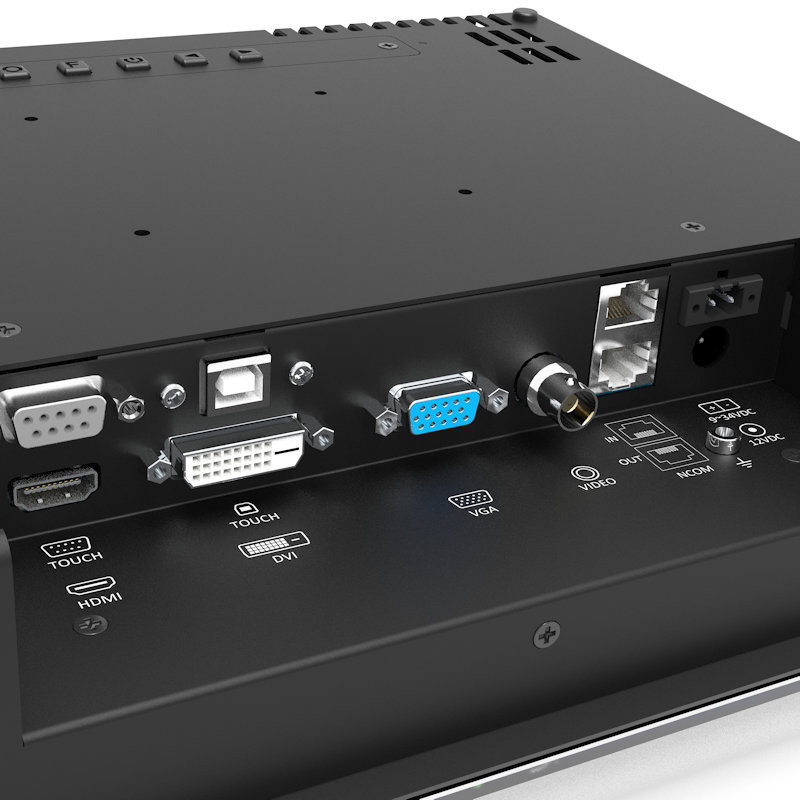

- VGA
- DVI-D
- Composite Video
- HDMI
- Dimming
Options -
Projected cap. USB OR RS232
-
External Dimming
-
High Bright LED 1000
-
9-34V Input
-
Optical Bonding
DURING OPTICAL BONDING A GEL COATING IS APPLIED BETWEEN THE LCD SURFACE AND THE GLASS. AS A RESULT, THE LACK OF EXTRA LIGHT REFRACTION BECOMES THE MAIN FEATURE, IN ADDITION TO THE ADVANTAGES OF ABSENCE OF DUST AND MOIST, AS ALSO RESISTANCE TO VANDALISM. ANOTHER MAJOR ADVANTAGE IS THE FASTER HEAT DRAINAGE. IN TERMS OF IMAGE, THE CONTRAST AND BRIGHTNESS ARE ENHANCED. A CLEAR IMAGE IS CREATED WHEN A COMBINATION IS MADE WITH ONE OF THE OTHER TECHNIQUES.
-
Anti Glare Glass
ANTI GLARE GLASS IS A FLOAT GLASS WITH A HIGH RESOLUTION AND NO REFLECTIVE EFFECT. THE GLASS IS ALMOST FREE FROM ANY BOTHERSOME REFLECTION. IT IS SUITABLE AS A MOUNTABLE LENS FOR HIGH RESOLUTION SCREENS AND PREMIUM DISPLAYS.
DURING OPTICAL BONDING A GEL COATING IS APPLIED BETWEEN THE LCD SURFACE AND THE GLASS. AS A RESULT, THE LACK OF EXTRA LIGHT REFRACTION BECOMES THE MAIN FEATURE, IN ADDITION TO THE ADVANTAGES OF ABSENCE OF DUST AND MOIST, AS ALSO RESISTANCE TO VANDALISM. ANOTHER MAJOR ADVANTAGE IS THE FASTER HEAT DRAINAGE. IN TERMS OF IMAGE, THE CONTRAST AND BRIGHTNESS ARE ENHANCED. A CLEAR IMAGE IS CREATED WHEN A COMBINATION IS MADE WITH ONE OF THE OTHER TECHNIQUES.
ANTI GLARE GLASS IS A FLOAT GLASS WITH A HIGH RESOLUTION AND NO REFLECTIVE EFFECT. THE GLASS IS ALMOST FREE FROM ANY BOTHERSOME REFLECTION. IT IS SUITABLE AS A MOUNTABLE LENS FOR HIGH RESOLUTION SCREENS AND PREMIUM DISPLAYS.
No two applications are the same.
A display installed on a ship’s bridge faces very different requirements from one integrated into a naval platform, industrial machine or air traffic control system.
That is why we start with the application, not the product.
Tell us where and how the monitor will be used, what requirements it needs to meet and how it will be integrated into your system. Our sales and engineering teams will help you determine the right solution.
YOUR APPLICATION → OUR ADVICE → YOUR CONFIGURATION → OUR ASSEMBLY
